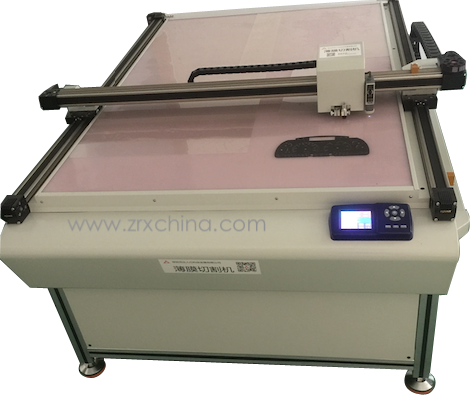

Cutting machine is widely used in the electronic industry, which is different from the previous knife moldRadiumShooting and cutting machine,itIt is cut with a knife and can also be used for drawing and indentation,
itCompared with the general proofing method, it has the following advantages:
1、 Compared with the die:
oneOmityouAt the time of sampleOnExpensive mold opening fee。
twoCan be omittedYou angExpensive knife sharpening fee。
threeIt is convenient to retest, justyouofAutoCADJust change the drawing file, which is efficient.
2、 AndRadiumshoot(Radiumshoot)comparison:
oneThe edge of the material will not be black after cutting.
twoIt will not burn when cutting thin materials.
threeCan cut copper foilAluminiumFoil, conductive cloth, foam, Mylar, etcRadiumRefractory materials。
fourThere is no harsh light at work, and the workers will not be injured by radiation, which is quite safe.
fivePrice ratioRadiumShoot cheap。
six. small batch quantity is allowedProduce。
3、 Application scope:
oneTouch membrane switch proofing.
twoCircuit board external mold design proofing.
threeFlexible circuit board, PVC board.
fourConductive cloth3MTape3mmFoam below.
5. 0.4mmBelowPET、PCMaterial Science.
sixAdhesive free base material, double-sided protective film.
7. 0.25mmThe following copper foilAluminiumFoil substrate。
eightFootwear, clothing, carton proofing.
4、 Unique functions:
oneFull cut and half cut can be completed at one time.
twoIn addition, it can also be indented or cut at one time.
threeYou can also draw, the thinnest nib0.2mm。
fourMinimum diameter of the cutting circleFor∮0.2mm。
fiveThe thickest cutting materialFor3mmThe size of the cutting pattern is consistent with the effective cutting area of the cutting machine.
sixCutting speed at1-650millimeter/Second adjustable, the maximum speed depends on the cutting type and tool head.
sevenThe cutting accuracy is guaranteed to be positive or negative0.025mmWithin.
eightInfrared induction positioning, high positioning accuracy.
