Basic parameters of equipment

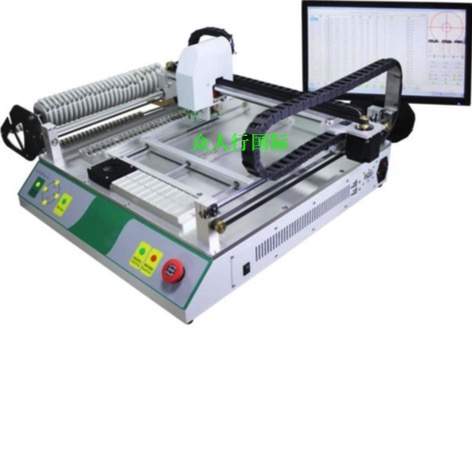

Model tvm802a
PCB mounting size range: 10 * 10mm --- 330 * 340mm
XY moving range: 395 * 450mm
Number of suction nozzles: 2
The mounting accuracy is 0.025mm
Mounting speed: 5500 particles / h
Step motor (flexible S-type acceleration and deceleration)
Applicable devices 0402 -- 5050, SOP, TQFP, QFN, etc
The number and type of material stations for component packaging, tape winding and bulk packaging (IC) are standard 26 stations with 8mm = 22, 12mm = 2, 16mm = 1 (customizable)
Vision system 2 high definition CCD cameras
Upper vision automatic recognition device position deviation
Automatic recognition of mark points based on lower vision
Number of air pumps: 2 Silent brushless vacuum pumps (- 92kp), 1 air blowing pump
Leak detection vacuum
Power 125w (average power during operation)
Power supply: AC220V or AC110V
Gross weight: 60kg
Net weight: 35kg
Packing volume: 0.38
Support PCB design software protl99 / altiumdesigner / Eagle / pads / Allegre, etc
